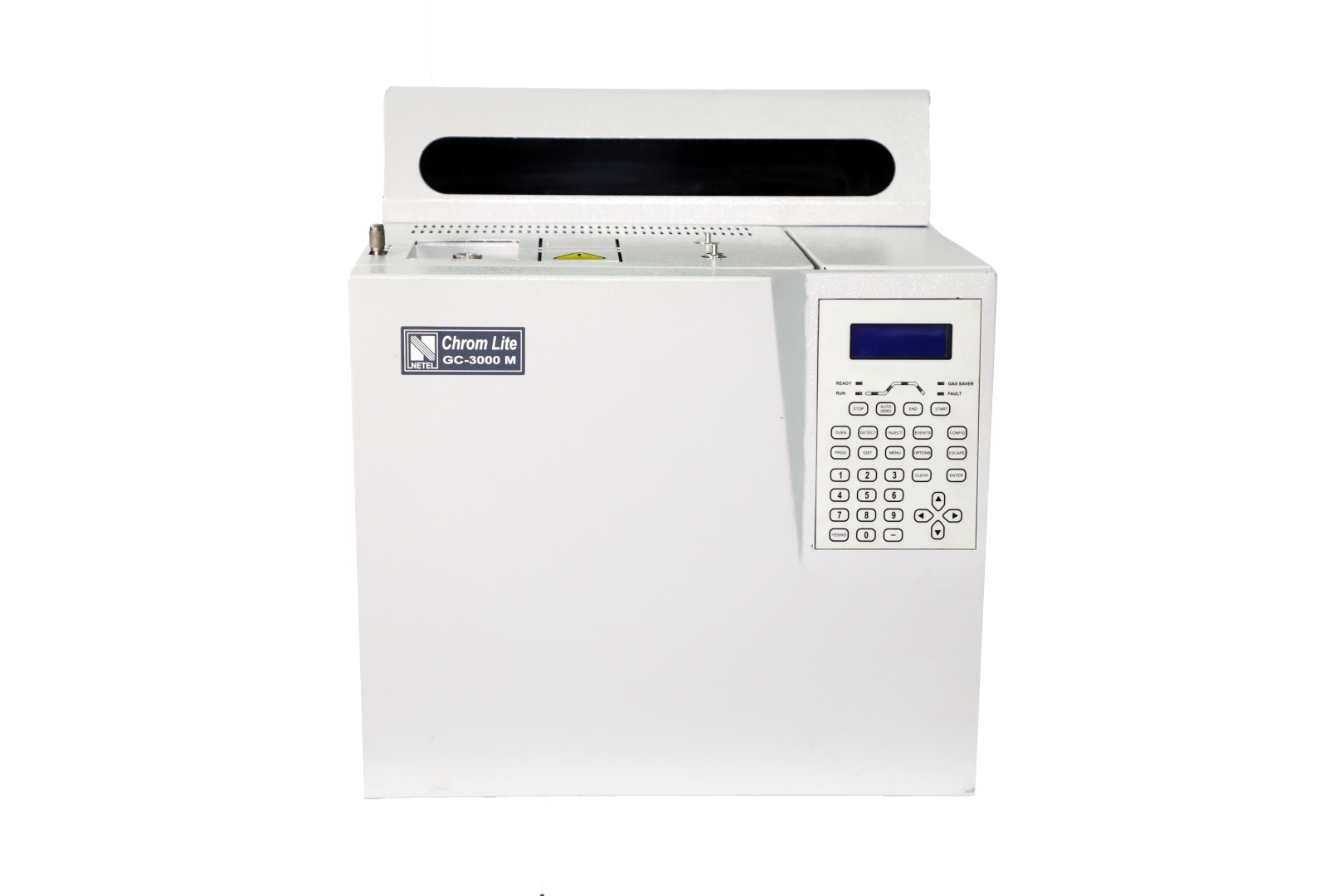

Chrom Lite GC 3000M

• Gas Chromatograph Model Chrome Lite GC 3000M with Dual Flame Ionization Detector having inlet options such as one packed and one Split/ Split-less injection port or dual capilary coloumn injection port or dual packed column injection port.
• 3 Independent Heated Zones upto 500°C for individual control of Injector, Detector and Oven.
• Higher sensitivity flame ionization detector.
• 32 Keys for setting of the parameters & eight status L.E.D. indications including oven ramp status.
• Optional attachments, head space sampler & auto liquid sampler with CFR compliant chromatography integrator

Column Oven:

•     Size: [H] 290 mm X [w] 280 mm, X[D] 160mm
•     Volume: 13.8 Ltrs.
•     Temperature: 5°C above the ambient temperature to 500 °C
•     Ramp rate: 1 °C to 50°C per minute
•     No. of ramps: 10
•     Cooling rate: 250 °C to 50 °C within 7 minutes or less at room temperature below 25 °C
•     Temperature Gradient: 2°C max (on 200 mm Dia. Circumference, 40 mm from the sensor)
•     Temperature Accuracy: +/-1% of set value from 50 °C to 500 °C
•     Heated Zones: 5 Independent Heated Zone up to 500 °C for individual control of Injectors, detector, oven

Pneumatics:

• Injectors: Pressure range 0 to 2 kg/cm2 Constant Pressure.
• Provision of external PPC with pressure capacity upto 60psi along with 5 pressure ramps.

Injection System:

• Option for combination of packed S/SL inlets such as one Split/split-less (capillary column) injector and one packed coloumn injector port or dual capilary or dual packed coloumn port as per the requirement.
• Temperature range settable upto 500 °C. in the step of 1°C.

Detectors:

• Higher sensitivity flame ionization detector with manual ignition mode. Temperature range settable up to 500 °C. in the step of 1 °C.
• Dynamic range 107
• Sensitivity equivalent to 3pg C/sec of Dodecane or less.
• Polarization: -240 V DC.

Display:

•  80 Characters (20 X 4 lines) LCD

Keyboard:

• 32 Keys for setting of the parameters & eight status LCD. indications including oven ramp status
• 4 External event control relay output.

Power Requirement:

•     Approximately 230V +/- 10V
•     Product dimentions: 515W x 450H x 535D mm
•     Weight: 37 kgs. (approx.)

Agrochemicals:

•  Evaluation of technical & formulated material complying BIS & relevant bodies

API/BDI industries :

• Estimation of residual solvents using HSS.
•  Estimation of residual solvents using HSS.
•  Control the quality of solvents/raw materials/reagents.
•  To monitor the course of the reaction whenever possible.

Environmental:

•  Monitoring the Bap content with other PAHs along with VOCs from ambiant air.
•  Residual pesticides from drinking water.
•  Monitor the Trihalomethanes from the ambient air.
•  PCB content of transformer oil.
•  Gaseous analyses of Hydrocarbons and permanent gases in ambient air.

Petroleum & Refinery:

• Evaluation of quality of Petroleum based products in the form of purity/impurities.

Perfume Industry:

•  Fragrance composition

Food Industry:

• Composition of edible oils with respect to MUFA,PUFA & SFA content with focus on trans evaluation.

Petrochemicals:

•  Evaluation of hydrocarbons blending in wax and relevant blends

Speciality Chemical Industry:

• Quality/Purity evaluation of speciallity chemicals with respect to purities or impurities.

Research:

• Accomplish the special projects that are compatible to GCs.

Polymer:

•  Evaluation of quality of raw materials in the form of monomers & further, detection of these monomers at trace levels in polymers.

Packaging:

•  Estimation of residual solvents from the packaging materials.

Solvent Industry:

•  Evaluation of the quality of recovered/distilled solvents with respect to purities and impurities.

Beverages:

•  Impurity profiling of alcohol product.
