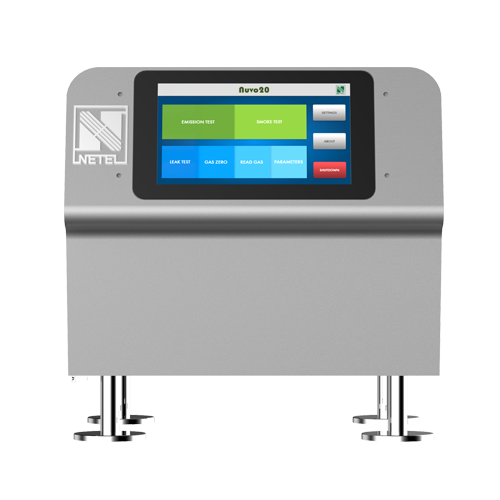

Nuvo 20 - Combo PUC Analyzer

Best in class features

• IOT based system with 7 inch touch screen display
• Inbuilt PC for online PUC certificate
• Mobile app for wireless display and control
• Cloud based remote health monitoring system
• Compact in size

Gas Analyzer

• Measures CO, CO2 , HC, O2 & NOX (optional)
• Continuous condensate discharge
• Short warm-up time & fast response
• Lambda measurement
• Air/Fuel ratio measurement

Diesel Smoke Module

• Measures smoke density in terms of Light Absorption Coefficient (K) & percentage opacity
• Auto zero facility
• Easy Calibration check
• Portable

Gas Analyzer

• Weight: 13.5kg (approx)
• Dim: L 350mm • W 305mm • H 305mm
• CO : 0 to 9.99% vol. Res. 0.001%
• HC : 0 to 20000 ppm.(Propane)Res.1ppm
• CO2 : 0 to 20.00 % vol. Res. 0.10%
• O2 : 0 to 25 % Res. 0.01 %
• Lambda : 0.200 to 1.800 % Res. 0.001%
• Air/Fuel : 0 to 30:1 Res. 1
• RPM Probe : 0 to 9990 RPM Res. 10 RPM
• Oil Temp. Probe : 0 to 150 deg. C Res. 1 deg. C
• Nox : 0 to 5000 ppm. Res. 1ppm

Diesel Smoke Module

• Weight: 12kg (approx)
• Dim: L 350mm • W 230mm • H 350mm
• Type of Smoke meter : Partial Flow
• Display Indication : Light Absorption Coefficient (K)/ Percentage Opacity
• Display Range : 0 to 9.90/m-¹
• Scale Resolution : 0.01/ m -¹
• Linearity : 0.1/m -¹
• Drift : Zero 0.00/m -¹, Span 0.1/m -¹
• Repeatability : 0.1/m -¹
• Light Source : 5 mm diameter green LED

(Where will the product be used & list of industries covered)

• Automobile Garages / Service Centres
• Private PUC Centres / Emission testing centres
• Petrol pumps
• Institutes / Universities / Engineering College
• Vehicles Manufacturers / Authorised Services Centre
